Brand

Dixxen

A3-DT

  • 메일
  • 다운로드

Special features

A maximum of 140dB sound pressure, located withina 1m front (Peak value)
Transmits broadcasts to a maximum 3kilometer long-distance target
Enables users to establish the speaker direction, monitor broadcasts and videos from automobiles and vessels insid

Technology features

  • 01. Equalizes sound directions based on directivity

    General speakers create an echo, overlapping sounds

    Directional speakers equalize the sound directions to minimize any overlapping sounds

  • 02. Minimizes echoes by taking into account the mirroring effect of the sounds

    Minimizes echoes when compared to general horns

  • 03. Replies occur at a consistent frequency

    Compression drivers with the ability to reply at a consistent frequency in an auditory perceptive region

  • 04. Reaches the STI of 0.46 or above on average in tunnels

    ※ STI (Speech Transmission Index)

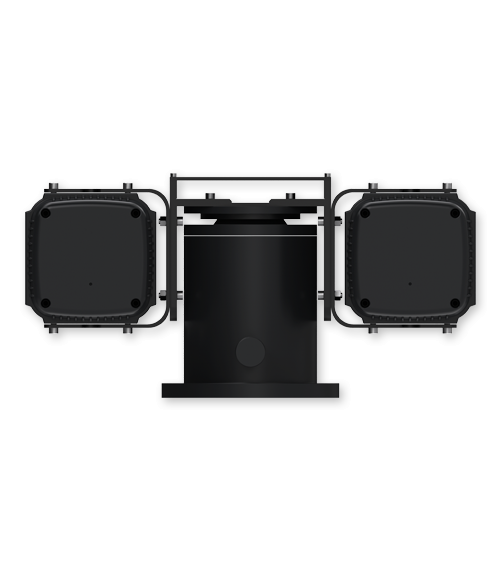

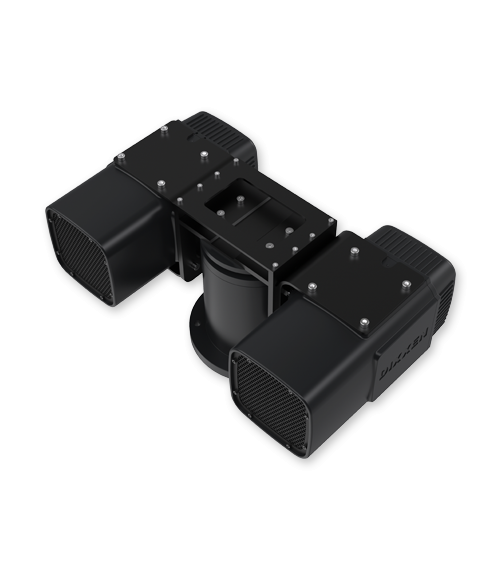

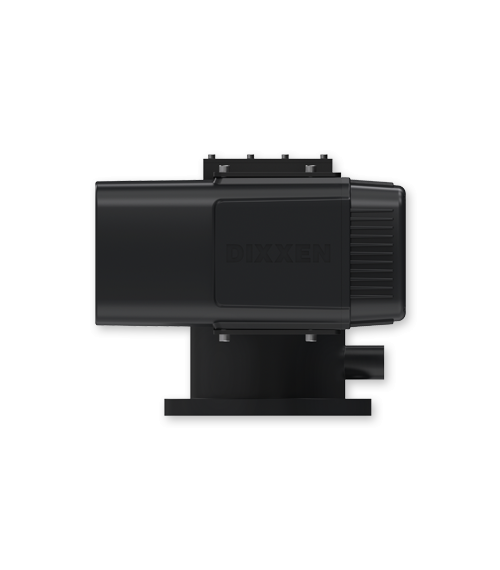

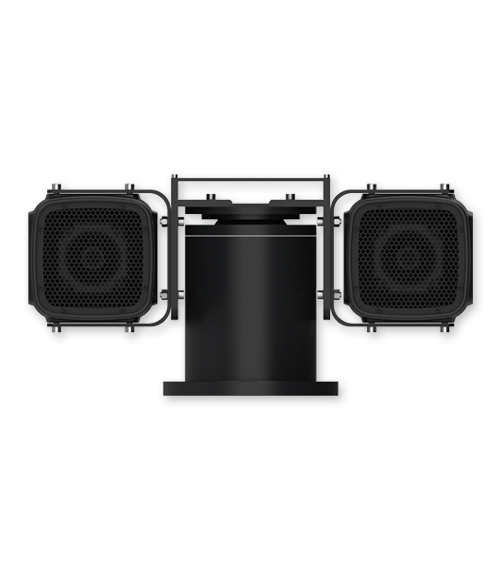

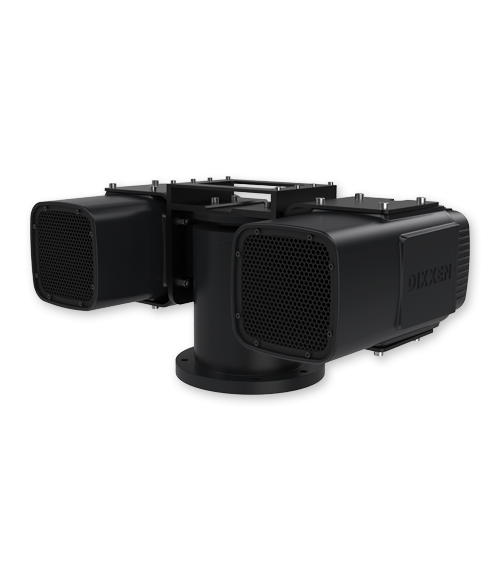

Product Composition

High-powered acoustic hailing speaker
Left/right rotating turntable
Controller (amplifier + turntable)

Specification

Maximum sound pressure (Peak value) 140 dB @1m front (Peak)
Pointing angle ±15°
Maximum transmission distance ~1000m
Guaranteed distance for the voice transmission ~300m
Frequency range 120Hz ~ 5kHz

Reference

01 / 04
